Iris Brick Amplifier
- Wireless 2-channel DSP Audio Amplifier

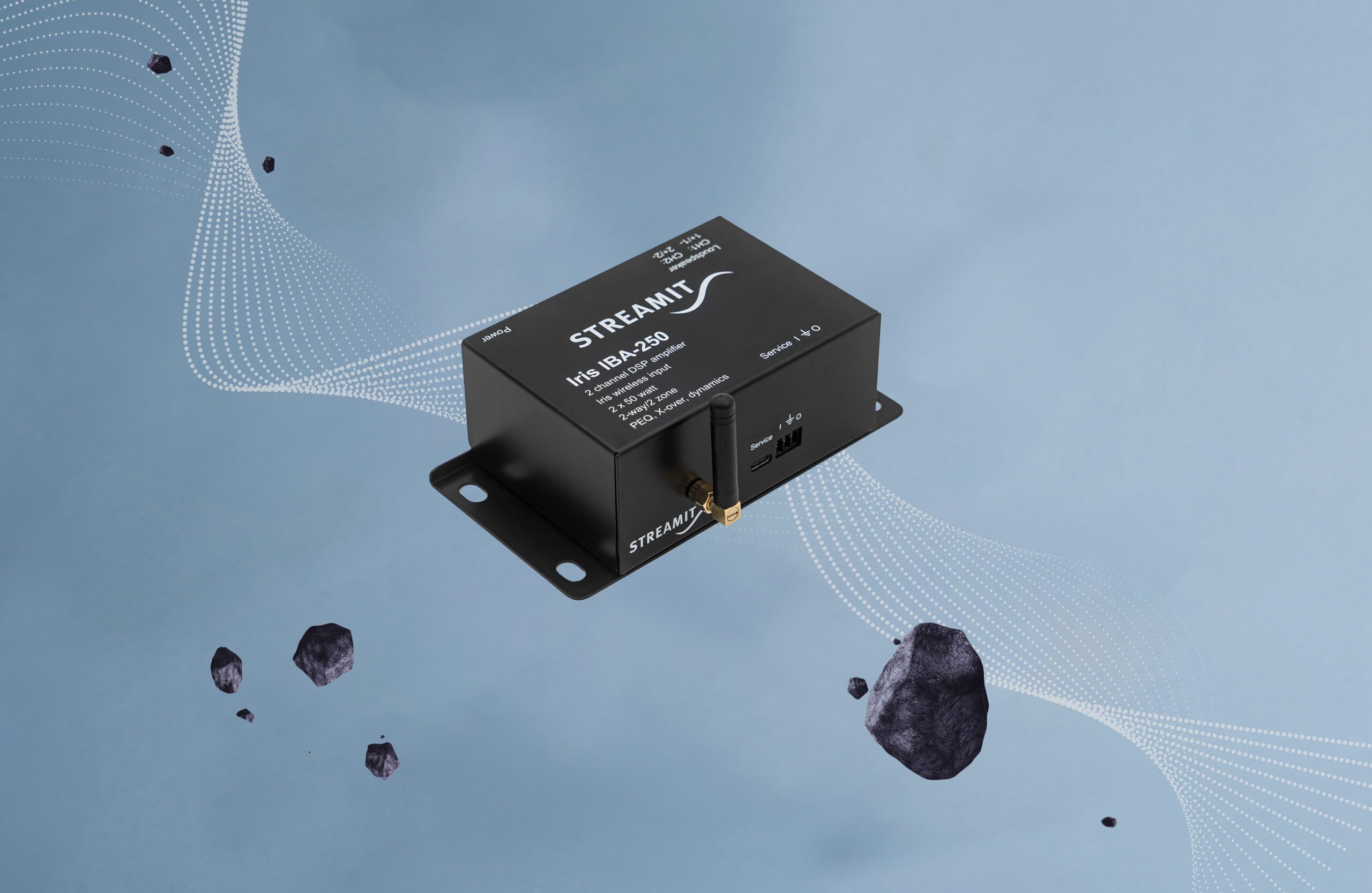

Discover the Iris Brick Amplifier: A compact, high-performance wireless audio amplifier. Equipped with an advanced Digital Signal Processor (DSP), it features sophisticated tools such as crossover control, limiters, Parametric Equalizer (PEQ), and delay settings, allowing you to fine-tune your audio to the highest degree of precision.
Discover the incredible wireless power and capabilities of Iris.
Iris Brick Amplifier
Iris Brick Amplifier
Renovation, education, shopping malls, retail, multipurpose and multi-use, restaurants, hotels, museums, shopping streets, historical buildings, and many more locations. The Iris Brick Amplifier is designed for seamless integration into a variety of audio setups. Utilizing 1.9 GHz technology, it guarantees stable and high-fidelity audio transmission, with a range that covers 50m indoors to 300m in line of sight. The full-band audio capability, spanning 20 Hz to 20 kHz, ensures that every detail of the sound is captured and conveyed with utmost clarity and minimal latency.
Iris Brick Amplifier is a testament to our commitment to superior audio solutions, combining power, sophistication, and compact design for the ultimate sound experience.
Key features
- 2×50 watt amplifier
- Powerful DSP with PEQ, crossover, limiter and delay
- Compatible with Iris (Pro) Transmitter
- Extensive range outdoors as well as indoors
- Up to 10 audio networks per site, with up to 50 receivers per network
- Rock solid reliability
- Two-channel audio operation
- 20 Hz – 20 kHz High-quality audio
- Configuration via mobile/pc app
- Low power consumption
- Mains powered
- Digital I/O for switching of external equipment
Product specifications
-
Wireless
- Wireless technology DECT 1.9 GHz
- Reception range 50m indoors to 300m outdoors
- Latency 16.5ms
- Synchronicity between receivers 0.15ms
-
- Antenna External
- <3>Analog audio
- Max Output Power @4-8 Ω 2x50W
- Frequency range 20 Hz to 20 kHz
- Audio channels 2
- Signal-to-noise ratio (SNR) > 90 dB
- THD+N (@ 1 kHz) <0,1%
-
Audio DSP
- About 100 configurable biquads
- Dynamic range compressors
- Multiband DRC
- Dynamic EQ
- Delay up to 1×20 ms or 2x10ms
- X-over
-
Electrical
- Power supply Integrated
- Operating voltage 100~240VAC/50~60Hz
- Power consumption (AC) Max 45W, <1W (idle)
-
Environmental and safety
- Operating temperature -20°C to 50°C
- Humidity 30% to 90% RH, non-condensing
Open indoor space
Iris is very suited for audio distribution in large indoor spaces where the layout of the venue may change. Setup a DJ, music front end like a PC or other sources anywhere you like and distribute it to portable speakers at any location for hassle free, fast setup.
No wires to pull, no trip hazards, worry free setup. Have complete freedom on where to place tour equipment. No ground loops, no level loss, just audio where you need it. Do you want the DJ in the middle of the auditorium? At the far end? You name it, you got it. Forget about transformers needed between music systems on different mains sections.
Wireless distribution without the pitfalls of other wireless attempt. Rock-solid connection and unaffected by wifi and Bluetooth congestion.
Store
For clothing stores, supermarkets, hardware stores and other types of shops, the Streamit Iris is the perfect wireless audio solution. By connecting an Iris transmitter to an audio source – for example an audio player or PC with a business music account – you can easily transfer music, announcements and commercials wirelessly to all speakers in the store. All you need are powered speakers and a built-in amplifier to which an Iris transmitter is connected.
The number of speakers and the distance to the speakers is no problem for Iris. The basic range starts at 50m (indoors) and can be extended to 300m (outdoors) with the help of directional antennas! And the number of speakers that can be connected with one Iris transmitter in 1.000 pieces.
Installing audio cables and drilling into walls are a thing of the past. This saves a lot of valuable installation time. And for monumental buildings, it is saved by ugly holes.
Outdoor events
At an outdoor event, considerable (audio) distances often must be bridged. In addition, there are sometimes obstacles on event grounds such as a ponds, hills, or pits. Think of festivals or golf tournaments. It is then quite a challenge to work with audio cables. In addition, laying audio cables takes a lot of time. Even if they need to be cleaned up again.
With the Streamit Iris, obstacles, costly installation time and clean-up time are a thing of the past. Because you can quickly connect and disconnect the Iris. The audio transmission also remains stable due to the powerful DECT technology.
If you connect an Iris transmitter to an audio source – for example an audio player or PC with a business music account – it can wirelessly transfer audio to any speaker with a built-in amplifier to which an Iris receiver is connected.
Don’t worry about the distance Iris can bridge. The basic range is 50m (indoors) and can be extended up to 300m (outdoors) with the help of antennas.
Restaurant
Pesca, a new restaurant in a historic landmark building in Rotterdam opened its doors recently using a popular consumer grade system using their Wi-Fi network. From the beginning the system was unsatisfactory in a professional environment because individual loudspeakers were continuously being dropped from the network, with loudspeakers throughout the venue spontaneously turning off and on. Very typical network issues, a lot of speakers dropped audio each time a new track started.
The supplier nor manufacturer could not solve the issue, so finally they turned to a consultant for advice. As the original manufacturer could not solve the issue, and the issue was with the product, the solution left was a completely new system.
The choice fell on custom built speakers that complemented the historic interior with hand veneered housings and custom 3D printed fronts combined with Iris.
Now the installation is running smoothly without any visible wires. Customers can now enjoy their unique concept with perfect audio.
Restaurant with outdoor terrace
The Streamit Iris is the perfect solution for restaurants that want to play the same music inside the restaurant and outside on the terrace. Installing an audio cable, which guests can trip over and which disfigures the building, will then be a thing of the past.
If you connect an Iris transmitter to an audio source – for example an audio player or PC with a business music account – it can wirelessly transfer audio to any speaker with a built-in amplifier to which an Iris receiver is connected. Don’t worry about the distance Iris can bridge. The basic range is 50m (indoors) and can be extended up to 300m (outdoors) with the help of antennas
